The ROCKANCHOR configuration possibilities numerous. It is offered in 3, 4, or 5 legs configuration. The three charts below indicates the three different models with their respective characteristics and specifications.

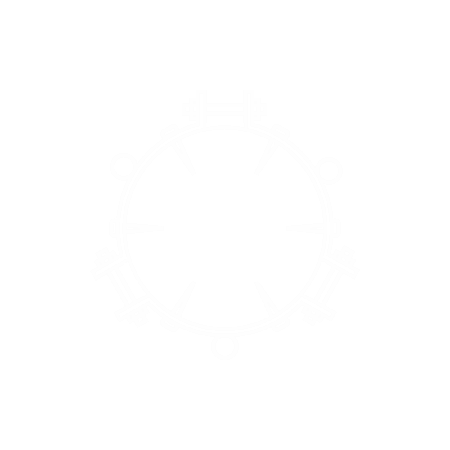

The technical drawing of the locweld rockanchor 3 anchor drawing

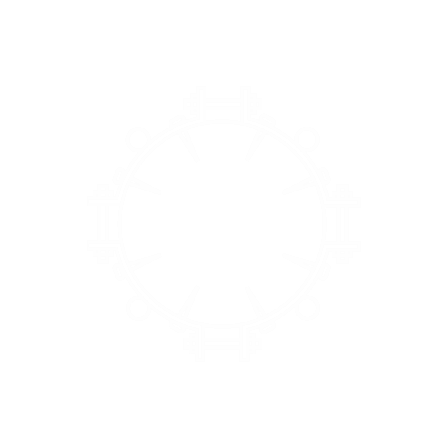

The technical drawing of the locweld rockanchor 4 anchor drawing

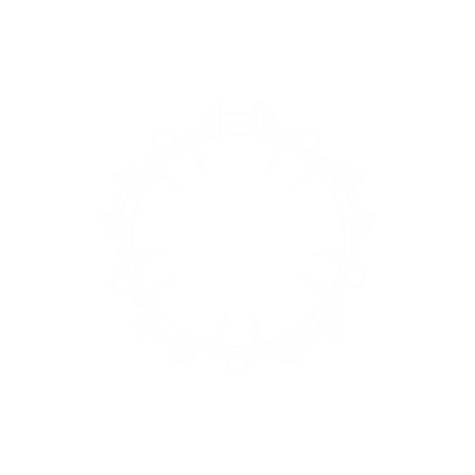

The technical drawing of the locweld rockanchor 5 anchor drawing

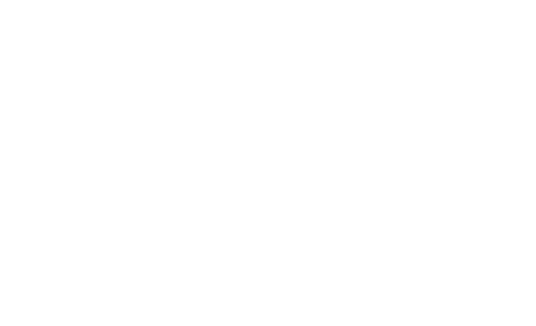

Specification tab for the Locweld Rockanchor 3 anchor configuration

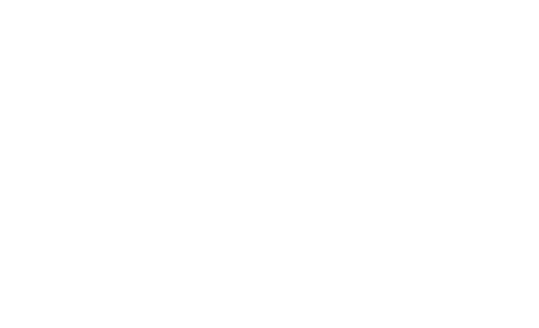

Specification tab for the Locweld Rockanchor 4 anchor configuration

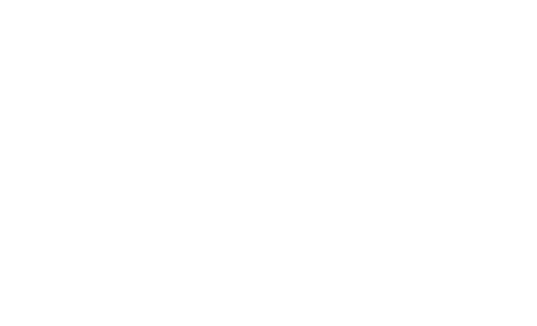

Specification tab for the Locweld Rockanchor 5 anchor configuration
3 ANCHOR CONFIGURATION 4 ANCHOR CONFIGURATION 5 ANCHOR CONFIGURATION
